superabrasive grinding wheels
Standard Ø up to 500 mm. Other configuration available on request.
Suitable for many cylindrical grinding such as fluting,
OD grinding, surface grinding, profile grinding with high feeds high material removal.
For wet and dry grinding.
Abrasive: diamond, CBN
Bond: resin, hybrid, vitrified, metal.
Standard Ø up to 200 mm. Other configuration available on request.
Suitable for cutting material with high hardness and profile grinding. High edge retention.
For wet and dry grinding.
Abrasive: diamond, CBN
Bond: resin, hybrid, vitrified, metal.

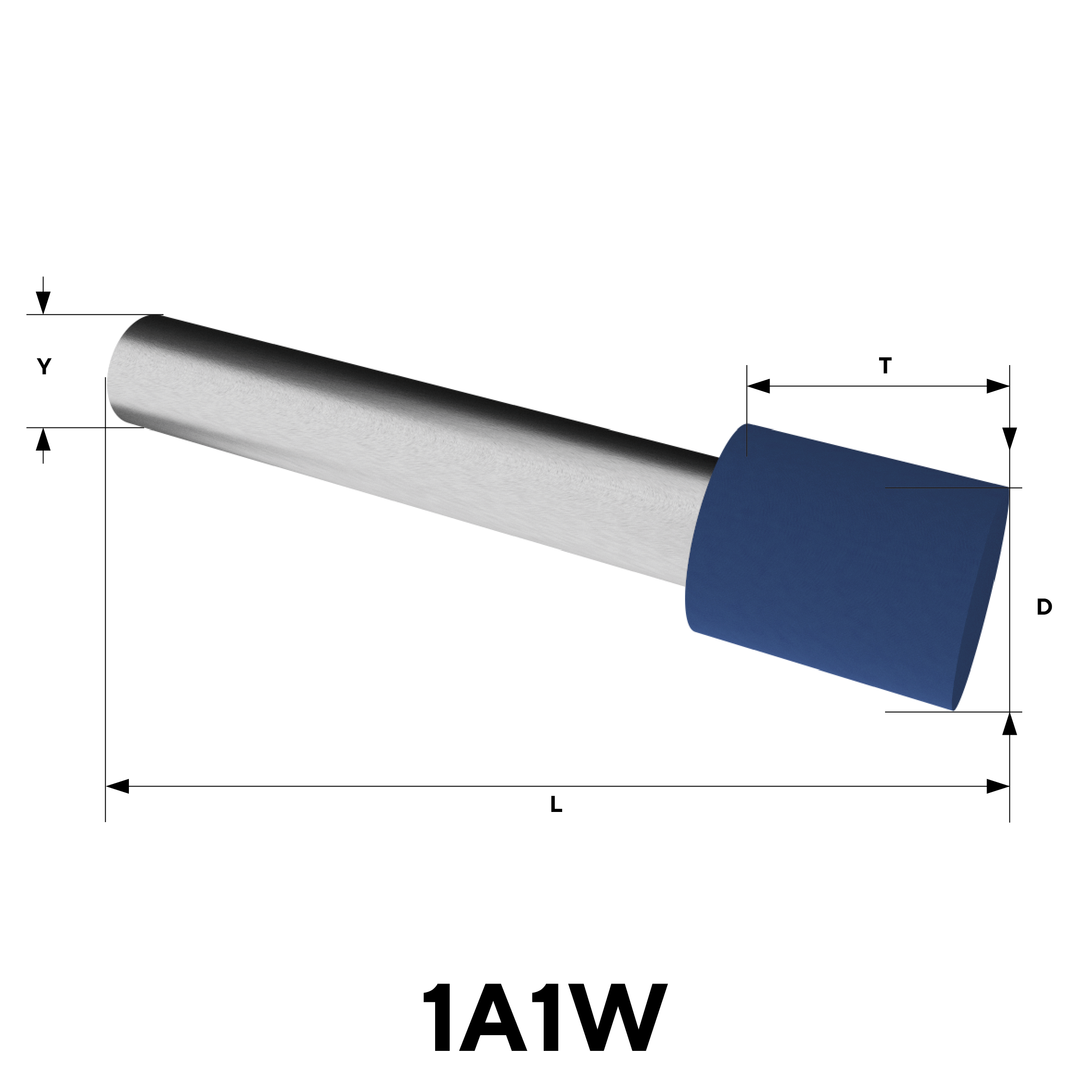

Grinding pin applicable for wet and dry internal grinding.
Abrasive: diamond, CBN
Bond: resin, hybrid, electroplated.
Standard Ø up to 75 mm. Other configuration available on request.
Suitable for cutting or internal grinding.
For wet and dry grinding.
Abrasive: diamond, CBN
Bond: resin, hybrid, vitrified, metal.
Grinding pin applicable for wet and dry internal grinding.
Abrasive: diamond, CBN
Bond: resin, hybrid, electroplated.
Standard Ø up to 150 mm. Other configuration available on request.
Suitable for grinding in glass industry, such as grooving.
For wet and dry grinding.
Abrasive: diamond, CBN
Bond: resin, hybrid, vitrified, metal.
Standard Ø up to 150 mm. Other configuration available on request.
Suitable for precise grinding.
For wet and dry grinding.
Abrasive: diamond, CBN
Bond: resin, hybrid, vitrified, metal.
Standard Ø up to 200 mm. Other configuration available on request.
Ideal for Blanchard grinding and other surface grinding operations.
For wet and dry grinding.
Abrasive: diamond, CBN
Bond: resin, hybrid, vitrified, metal.
Standard Ø up to 200 mm. Other configuration available on request.
Suitable for fluting, surface grinding, micro drill grinding, side grinding. Large depth of cut and high feeds.
For wet and dry grinding.
Abrasive: diamond, CBN
Bond: resin, hybrid, vitrified, metal.
Standard Ø up to 250 mm. Other configuration available on request.
Suitable for TC tools sharpening, saw grinding and face grinding.
For wet and dry grinding.
Abrasive: diamond, CBN
Bond: resin, hybrid, vitrified, metal.
Standard Ø up to 200 mm. Other configuration available on request.
Suitable for high precision edge/surface grinding of tools.
For wet and dry grinding.
Abrasive: diamond, CBN
Bond: resin, hybrid, vitrified, metal.
Available also in 6a2T, 6a2C and 6a2H variants.
Standard Ø up to 250 mm. Other configuration available on request.
Suitable for high precision grinding. Saw grinding.
For wet and dry grinding.
Abrasive: diamond, CBN
Bond: resin, hybrid, vitrified, metal.
Standard Ø up to 200 mm. Other configuration available on request.
Suitable for OD relief grinding, surface grinding.
For wet and dry grinding.
Abrasive: diamond, CBN
Bond: resin, hybrid, vitrified, metal.
Standard Ø up to 200 mm. Other configuration available on request.
Suitable for OD relief grinding, face grinding.
For wet and dry grinding.
Abrasive: diamond, CBN
Bond: resin, hybrid, vitrified, metal.
Standard Ø up to 150 mm. Other configuration available on request.
Suitable for OD relief grinding, TC tools grinding, cutters grinding, end grinding and surface grinding.
For wet and dry grinding.
Abrasive: diamond, CBN
Bond: resin, hybrid, vitrified, metal, electrochemical.
Standard Ø up to 200 mm. Other configuration available on request.
Suitable for cutters sharpening, TC tools grinding, surface grinding. Applicable also for manual grinding.
For wet and dry grinding.
Abrasive: diamond, CBN
Bond: resin, hybrid, vitrified, metal, electrochemical.
Standard Ø up to 200 mm. Other configuration available on request.
Suitable for cutters sharpening and TC tools grinding.
For wet and dry grinding.
Abrasive: diamond, CBN
Bond: resin, hybrid, vitrified, metal.
Standard Ø up to 150 mm. Other configuration available on request.
Suitable for saw grinding, carbide tools grinding, milling cutters, surface grinding and end grinding.
For wet and dry grinding.
Abrasive: diamond, CBN
Bond: resin, hybrid, vitrified, metal, electrochemical.
Standard Ø up to 200 mm. Other configuration available on request.
Suitable for profile grinding of saw.
For wet and dry grinding.
Abrasive: diamond, CBN
Bond: resin, hybrid, vitrified, metal.
Standard Ø up to 150 mm. Other configuration available on request.
Suitable for cutters sharpening, TC tools grinding, OD grinding.
For wet and dry grinding.
Abrasive: diamond, CBN
Bond: resin, hybrid, vitrified, metal.
Standard Ø up to 150 mm. Other configuration available on request.
Suitable for cutters sharpening and TC tools grinding.
For wet and dry grinding.
Abrasive: diamond, CBN
Bond: resin, hybrid, vitrified, metal.
